Based on the environment, the following actions occur when you use a SCAN to connect to an Oracle RAC database using a service name.
The numbered actions correspond to the arrows shown in Load Balancing Actions for Oracle RAC Connections That Use SCAN.
The LREG process of each instance registers the database services with the default listener on the local node and with each SCAN listener, which is specified by the REMOTE_LISTENER
database parameter. The listeners are dynamically updated on the amount of work being handled by the instances and dispatchers.
The client issues a database connection request using a connect descriptor of the form:
orausr/@scan_name:1521/webapp
Note:
If you use the Easy Connect naming method, then ensure that the sqlnet.ora
file on the client contains EZCONNECT
in the list of naming methods specified by the NAMES.DIRECTORY_PATH
parameter.
The client uses DNS to resolve scan_name
. After DNS returns the three addresses assigned to the SCAN, the client sends a connect request to the first IP address. If the connect request fails, then the client attempts to connect using the next IP address.
When the connect request is successful, the client connects to a SCAN listener for the cluster that hosts the sales
database and has an instance offering the webapp
service, which in this example is sales1
and sales2
. The SCAN listener compares the workload of the instances sales1
and sales2
and the workload of the nodes on which they run. If the SCAN listener determines that node2
is less loaded than node1
, then the SCAN listener selects node2
and sends the address for the local listener on that node back to the client.
The client connects to the local listener on node2
. The local listener starts a dedicated server process for the connection to the database.
The client connects directly to the dedicated server process on node2
and accesses the sales2
database instance.

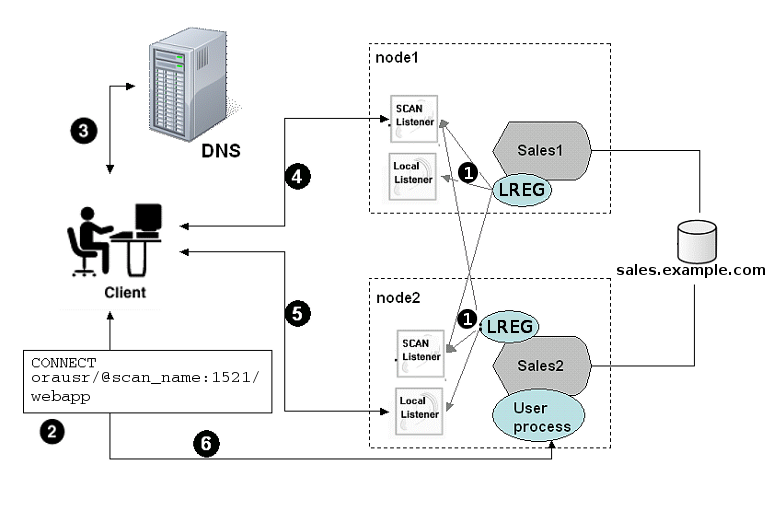

Figure 6-1 Load Balancing Actions for Oracle RAC Connections That Use SCAN
