6.4 How to Access RESTful Services

Access RESTful Services from SQL Workshop.

Parent topic: Enabling Data Exchange with RESTful Services

6.4.1 Accessing RESTful Services

Access RESTful Services from the Workspace home page by clicking SQL Workshop and then RESTful Services.

To access RESTful Services:

  1. On the Workspace home page, click SQL Workshop.

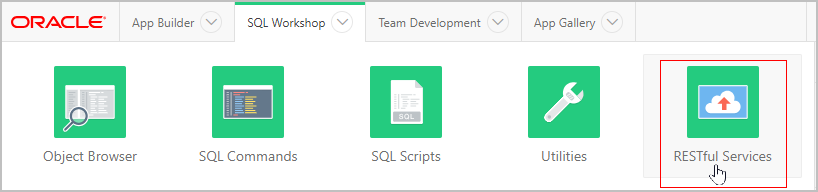

  2. Click RESTful Services.

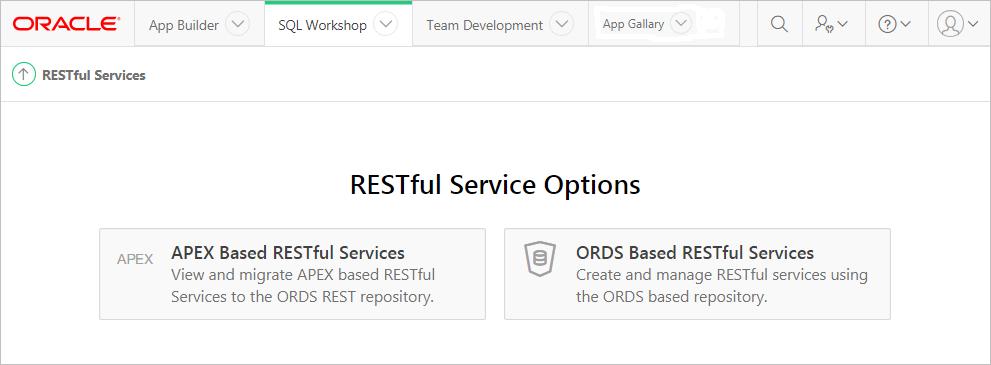

    In a new workspace, the bottom of the page displays two regions: APEX Based RESTful Services and ORDS Based RESTful Services. Click these regions to create an APEX Based RESTful Services or ORDS Based RESTful Services.

See Also:

"Creating an ORDS RESTful Service Module"

Parent topic: How to Access RESTful Services

6.4.2 Registering Schema with ORDS

If you are accessing ORDS Restful Services in a new workspace, you must register the schema with ORDS RESTful Data Services.

To register a schema with ORDS RESTful Data Services:

  1. On the Workspace home page, click SQL Workshop.
  2. Click RESTful Services.

    The RESTful Services home page appears.

  3. Click ORDS Based RESTful Services.

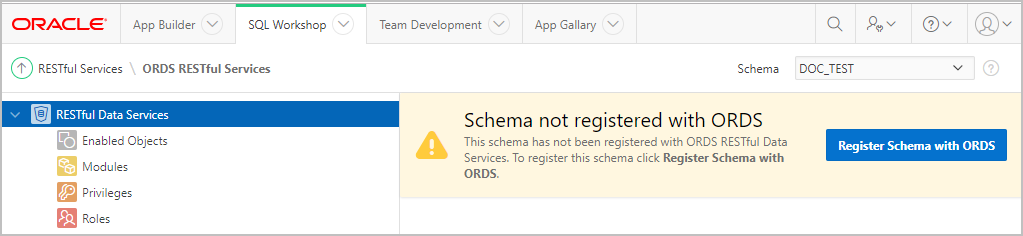

    ORDS RESTful Services page appears. If your schema is not registered with ORDS RESTful Data Services, the following message appears.

  4. Click Register Schema with ORDS.

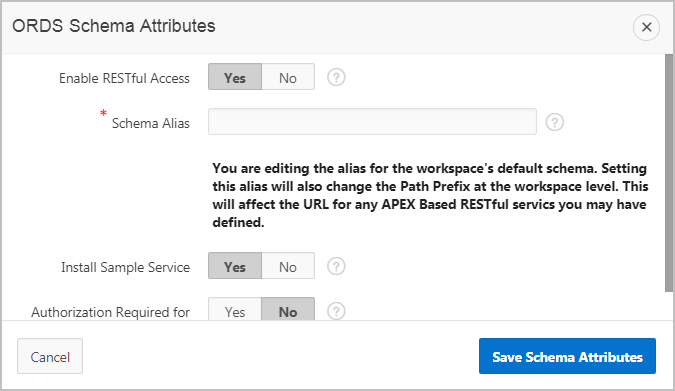

    ORDS Schema Attributes dialog appears.

    Note:

    ORDS enabling a schema that is assigned to more than one workspace as the default schema causes issues with workspace related static files. Oracle recommends that you do not ORDS enable schemas shared amongst multiple workpaces until you are running ORDS 18.3 or higher.

    Description of GUID-E02FD29C-04FC-4DF3-B36D-BCBE52FD085E-default.png follows
    Description of the illustration GUID-E02FD29C-04FC-4DF3-B36D-BCBE52FD085E-default.png
  5. Enter the attribute details:
    1. Enable RESTful Access - Click Yes to enable or click No to disable the access to any REST services defined in the schema.
    2. Schema Alias - Enter the name of the schema alias to be used in the formation of the URL referencing any RESTful service within the schema.
    3. Install Sample Service - Click Yes or No. Clicking Yes installs sample oracle.example.hr RESTful service.
    4. Authorization Required for Metadata Access - Click Yes or No. Clicking Yes requires Oracle REST Data Services user authorization before allowing access to the ORDS metadata catalog of the schema.
  6. Click Save Schema Attributes.

    ORDS RESTful page appears with a message Schema enabled for use with ORDS RESTful Services and sample RESTful Service successfully installed.

Parent topic: How to Access RESTful Services

6.4.3 About ORDS RESTful Services Dashboard

Learn about ORDS RESTful Services dashboard.

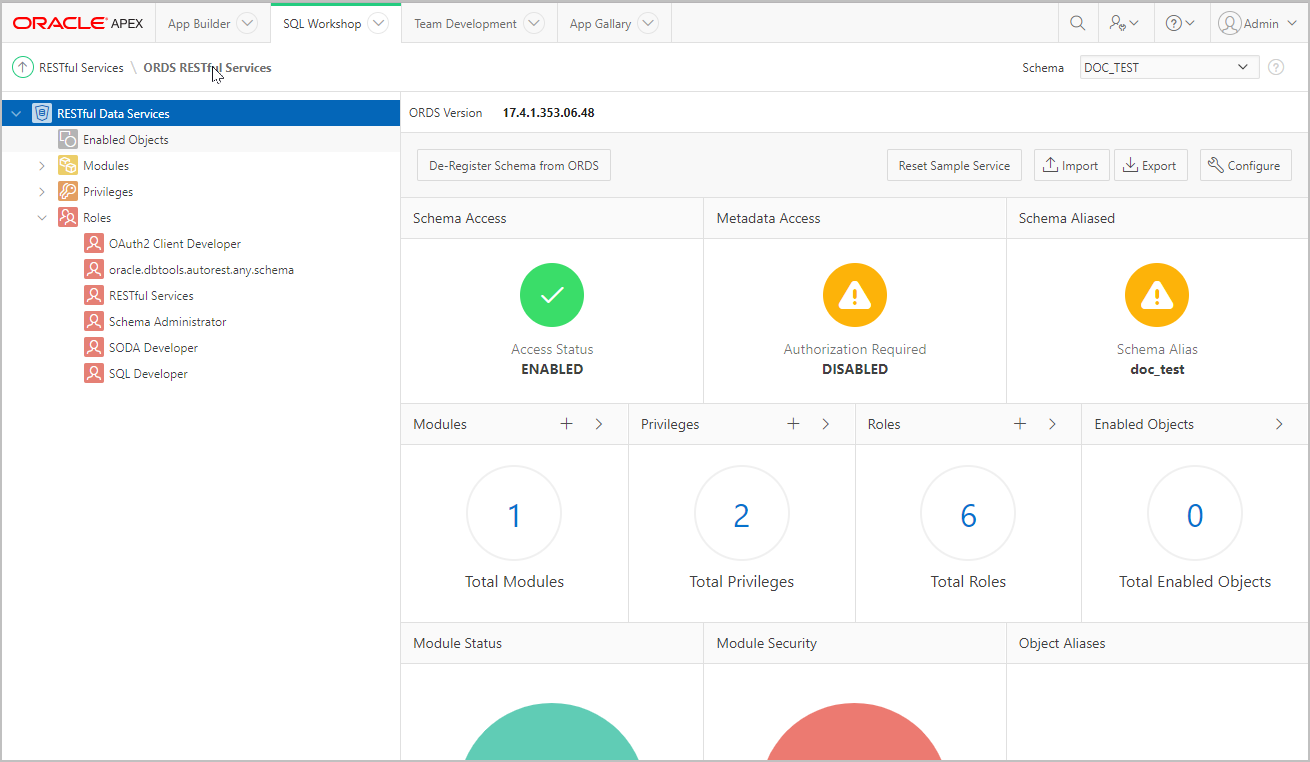

Upon registering the schema with ORDS, the ORDS RESTful services page appears displaying the ORDS version.

Description of GUID-3EA6543F-E955-49CD-8586-153CB3E5C9D8-default.png follows
Description of the illustration GUID-3EA6543F-E955-49CD-8586-153CB3E5C9D8-default.png
The following table details the information available in the ORDS RESTful Services Dashboard:

Table 6-1 ORDS RESTful Services Dashboard Parameters

Name Description

ORDS Version

Version of ORDS.

De- Register Schema from ORDS

Click to de-register schema.

Reset Sample Service

Click to reset the installed sample service.

Note: Reset Sample Service Verification dialog appears warning the user that the service will be completely deleted and re-created.

Import

Click to import ORDS based RESTful service definitions from a SQL script generated by SQL Developer or Oracle Application Express.

Export

Click to export ORDS based RESTful Service metadata to SQL script file format.

Note: If you are running ORDS 18.3 or later , dipalys the Include Enable Schema and Include Privilages fields.

Include Enable Schema - (Default: Enabled) This dictates whether the resulting export script contains ORDS.ENABLE_SCHEMA statement

Include Privileges - (Default: Enabled) This dictates whether the resulting export script contains the privilege definitions associated with the chosen module(s). (includes protected module, roles, and resource patterns)

Configure

Click to configure ORDS schema attributes.

Note: ORDS Enabling a schema that is assigned to more than one workspace as the default schema causes issues with workspace related static files. Oracle recommends that you do not ORDS enable schemas shared amongst multiple workpaces until you are running ORDS 18.3 or higher.

Schema Access

Displays whether access to the RESTful services defined within the schema is enabled or disabled.

Metadata Access

Displays whether Oracle REST Data Services should require user authorization before allowing access to the ORDS metadata catalog of this schema.

Schema Aliased

Displays alias name for the current schema.

Modules

Displays total number of modules defined within the schema. Click to view list of defined modules.

Privileges

Displays total number of privileges defined. Click to view list of defined privileges.

Roles

Displays total number of roles associated. Click to view the associated roles.

Enabled Objects

Displays the total number of REST enabled database objects in the schema. Click to view list of REST enabled objects.

Module Status

Displays the status of published and unpublished modules.

Module Security

Displays the status of protected and unprotected modules.

Object Aliases

Displays the status of Aliased and Unaliased objects.

Parent topic: How to Access RESTful Services
