2.11 Troubleshooting Oracle ORAchk and Oracle EXAchk

To troubleshoot Oracle ORAchk and Oracle EXAchk issues, follow the steps explained in this section.

1. Ensure that you are using the correct tool.

   Use Oracle EXAchk for Oracle Engineered Systems except for Oracle Database Appliance. For all other systems, use Oracle ORAchk.

2. Ensure that you are using the latest versions of Oracle ORAchk and Oracle EXAchk.
   1. Check the version using the –v option.

      $ ./orachk –v


      $ ./exachk –v


   2. Compare your version with the latest version available here:

      • For Oracle ORAchk, refer to My Oracle Support Note 1268927.2:

        https://support.oracle.com/rs?type=doc&id=1268927.2

      • For Oracle EXAchk, refer to My Oracle Support Note 1070954.1:

        https://support.oracle.com/rs?type=doc&id=1070954.1

3. Check the FAQ  for similar problems in My Oracle Support Note 1070954.1.
4. Review the files within the log directory.

   • Check the applicable error.log files for relevant errors.

     The error.log files contain stderr output captured during the run.

     • output_dir/log/orachk _error.log

     • output_dir/log/exachk _error.log

   • Check the applicable log for other relevant information.

     • output_dir/log/orachk.log

     • output_dir/log/exachk.log

5. Review My Oracle Support Notes for similar problems.
6. For Oracle ORAchk issues, check ORAchk (MOSC) in My Oracle Support Community (MOSC).
7. If necessary, capture the debug output, and then log an SR and attach the resulting zip file.

Follow these steps to capture debug information.

1. Reproduce the problem with fewest runs before enabling debug.

   Debug captures a lot and the resulting zip file can be large so try to narrow down the amount of run necessary to reproduce the problem.

   Use command-line options to limit the scope of checks.

2. Enable debug.
   If you are running the tool in on-demand mode, then use the –debug option:

   $ ./orachk –debug


   $ ./exachk –debug


   For example:

   $ ./orachk -debug
   + PS4='$(date "+ $LINENO: + ")'
    36276: + [[ -z 1 ]]
    36302: + sed 's/[\.\/]//g'
    36302: + basename /global/u01/app/oracle/arch03/ORACLE_CHECK/ORACLE_SR/orachk
    36302: + echo orachk
    36302: + program_name=orachk
    36303: + which bash
    36303: + echo 0
    36303: + bash_found=0
    36304: + SSH_PASS_STATUS=0
    36307: + set +u
    36309: + '[' 0 -ne 0 ']'
    36315: + raccheck_deprecate_msg='RACcheck has been deprecated.  ORAchk provides the same functionality.
    Please switch to using ORAchk from same directory.\n\nRACcheck will not be available after this (12.1.0.2.3) release.
    See MOS Note "RACcheck Configuration Audit Tool Statement of Direction - name change to ORAchk (Doc ID 1591208.1)".\n'
    36316: + '[' orachk = raccheck ']'
    36325: + export LC_ALL=C
    36325: + LC_ALL=C
    36326: + NO_WRITE_PASS=0
    36327: + ECHO=:
    36328: + DEBUG=:
    36329: + AUDITTAB=db_audit
    36379: + supported_modules='PREUPGR
    . . . . . .
    . . . . . .



   When you enable debug, Oracle ORAchk and Oracle EXAchk create a new debug log file in:

   • output_dir/log/orachk _debug_date_stamp_time_stamp.log

   • output_dir/log/exachk _debug_date_stamp_time_stamp.log

   The debug output file contains:

   • bash -x of program on local node

   • bash -x of program on all remote nodes

   • bash -x of all dynamically generated and called scripts

     • The output_dir directory retains various other temporary files used during health checks.

     • If you run health checks using the daemon, then restart the daemon with the –d start_debug option.

       Running the daemon with –d start_debug option generates both debug for daemon and includes debug in all client runs:

       $ ./orachk –d start_debug


       $ ./exachk –d start_debug


     When debug is run with the daemon, Oracle ORAchk and Oracle EXAchk create a daemon debug log file in the directory in which the daemon was started:

     orachk_daemon_debug.log


     exachk_daemon_debug.log


3. Collect the resulting output zip file and the daemon debug log file, if applicable.

If Oracle ORAChk and Oracle EXAchk tools have problem locating and running SSH or SCP, then the tools cannot run any remote checks.

1. Verify that the SSH and SCP commands can be found.

   • The SSH commands return the error, -bash: /usr/bin/ssh -q: No such file or directory, if SSH is not located where expected.

     Set the RAT_SSHELL environment variable pointing to the location of SSH:

     $ export RAT_SSHELL=path to ssh


   • The SCP commands return the error, /usr/bin/scp -q: No such file or directory, if SCP is not located where expected.

     Set the RAT_SCOPY environment variable pointing to the location of SCP:

     $ export RAT_SCOPY=path to scp


2. Verify that the user you are running as, can run the following command manually from where you are running Oracle ORAchk and Oracle EXAchk to whichever remote node is failing.

   $ ssh root@remotehostname "id"
   root@remotehostname's password:
   uid=0(root) gid=0(root) groups=0(root),1(bin),2(daemon),3(sys),4(adm),6(disk),10(wheel)


   • If you face any problems running the command, then contact the systems administrators to correct temporarily for running the tool.

   • Oracle ORAchk and Oracle EXAchk search for the prompts or traps in remote user profiles. If you have prompts in remote profiles, then comment them out at least temporarily and test run again.

   • If you can configure passwordless remote root login, then edit the /etc/ssh/sshd_config file as follows:

     n to yes


     Now, run the following command as root on all nodes of the cluster:

     hd restart


3. Enable Expect debugging.

   • Oracle ORAchk uses the Expect utility when available to answer password prompts to connect to remote nodes for password validation. Also, to run root collections without logging the actual connection process by default.

   • Set environment variables to help debug remote target connection issues.

     • RAT_EXPECT_DEBUG: If this variable is set to -d , then the Expect command tracing is activated. The trace information is written to the standard output.

       For example:

       export RAT_EXPECT_DEBUG=-d


     • RAT_EXPECT_STRACE_DEBUG: If this variable is set to strace, strace calls the Expect command. The trace information is written to the standard output.

       For example:

       export RAT_EXPECT_STRACE_DEBUG=strace


   • By varying the combinations of these two variables, you can get three levels of Expect connection trace information.

./orachk -local

./exachk -local

./orachk –merge zipfile 1  zip file 2 > zip file 3 > zip file ...

./exachk –merge zipfile 1  zip file 2 > zip file 3 > zip file ...

You must have sufficient directory permissions to run Oracle ORAchk and Oracle EXAchk.

1. Verify that the permissions on the tools scripts orachk and exachk  are set to 755 (-rwxr-xr-x).
   If the permissions are not set, then set the permissions as follows:

   $ chmod 755 orachk


   $ chmod 755 exachk


2. If you install Oracle ORAchk and Oracle EXAchk as root  and run the tools as a different user, then you may not have the necessary directory permissions.

   [root@randomdb01 exachk]# ls -la
   total 14072
   drwxr-xr-x  3 root root    4096 Jun  7 08:25 .
   drwxrwxrwt 12 root root    4096 Jun  7 09:27 ..
   drwxrwxr-x  2 root root    4096 May 24 16:50 .cgrep
   -rw-rw-r--  1 root root 9099005 May 24 16:50 collections.dat
   -rwxr-xr-x  1 root root  807865 May 24 16:50 exachk
   -rw-r--r--  1 root root 1646483 Jun  7 08:24 exachk.zip
   -rw-r--r--  1 root root    2591 May 24 16:50 readme.txt
   -rw-rw-r--  1 root root 2799973 May 24 16:50 rules.dat
   -rw-r--r--  1 root root     297 May 24 16:50 UserGuide.txt


Follow these steps to fix slow performance and other issues.

When Oracle ORAchk and Oracle EXAchk run commands, a child process is spawned to run the command and a watchdog daemon monitors the child process. If the child process is slow or hung, then the watchdog kills the child process and the check is registered as skipped:

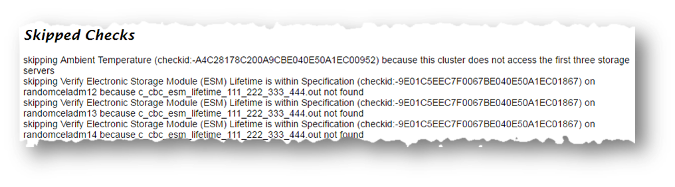

Figure 2-27 Skipped Checks

Description of "Figure 2-27 Skipped Checks"

The watchdog.log file also contains entries similar to killing stuck command.

Depending on the cause of the problem, you may not see skipped checks.

1. Determine if there is a pattern to what is causing the problem.

   • EBS checks, for example, depend on the amount of data present and may take longer than the default timeout.

   • Remote checks may timeout and be killed and skipped, if there are prompts in the remote profile. Oracle ORAchk and Oracle EXAchk search for prompts or traps in the remote user profiles. If you have prompts in remote profiles, then comment them out at least temporarily and test run again.

2. Increase the default timeout.

   • Override the default timeout by setting the environment variables.

     Table 2-5 Timeout Controlling

     Timeout Controlling	Default Value (seconds)	Environment Variable
     Checks not run by root (most).	90	RAT_TIMEOUT
     Collection of all root checks.	300	RAT_ROOT_TIMEOUT
     SSH login DNS handshake.	1	RAT_PASSWORDCHECK_TIMEOUT

   • The default timeouts are designed to be lengthy enough for most cases. If the timeout is not long enough, then it is possible you are experiencing a system performance problem. Many timeouts can be indicative of a non-Oracle ORAchk and Oracle EXAchk problem in the environment.

3. If it is not acceptable to increase the timeout to the point where nothing fails, then try excluding problematic checks running separately with a large enough timeout and then merging the reports back together.
4. If the problem does not appear to be down to slow or skipped checks but you have a large cluster, then try increasing the number of slave processes user for parallel database run.

   • Database collections are run in parallel. The default number of slave processes used for parallel database run is calculated automatically. Change the default number using the options:-dbparallel slave processes, or –dbparallelmax

   Note:

   The higher the parallelism the more resources are consumed. However, the elapsed time is reduced.

   Raise or lower the number of parallel slaves beyond the default value.

   After the entire system is brought up after maintenance, but before the users are permitted on the system, use a higher number of parallel slaves to finish a run as quickly as possible.

   On a busy production system, use a number less than the default value yet more than running in serial mode to get a run more quickly with less impact on the running system.

   Turn off the parallel database run using the -dbserial option.
