7 Optimizing Joins with In-Memory Aggregation

This sample star schema in this scenario contains the sales_online fact table and two dimension tables: geography and products.

Each row in geography is uniquely identified by the geog_id column. Each row in products is uniquely identified by the prod_id column. Each row in sales_online is uniquely identified by the geog_id, prod_id, and amount sold.

A manager asks the business question, "How many Acme products in each subcategory were sold online in Washington, and how many were sold in California?" To answer this question, an analytic query of the sales_online fact table joins the products and geography dimension tables as follows:

SELECT p.category, p.subcategory, g.country, g.state, SUM(s.amount)
FROM   sales_online s, products p, geography g
WHERE  s.geog_id = g.geog_id
AND    s.prod_id = p.prod_id
AND    g.state IN ('WA','CA')
AND    p.manuf = 'ACME'
GROUP BY category, subcategory, country, state

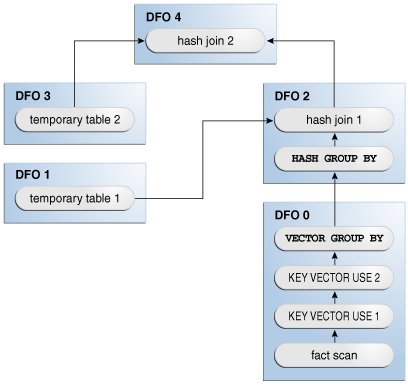

In the first phase of VECTOR GROUP BY aggregation for this query, the database creates a dense grouping key for each city/state combination for cities in the states of Washington or California.

In Table 7-6, the 1 is the USA,WA grouping key, and the 2 is the USA,CA grouping key.

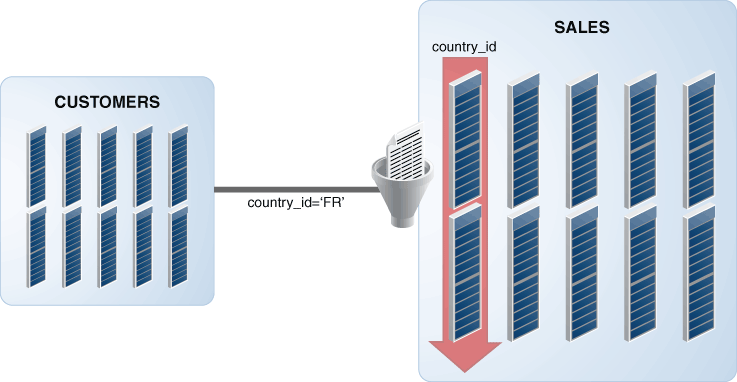

A key vector for the geography table looks like the array represented by the final column in Table 7-5. The values are the geography dense grouping keys. Thus, the key vector indicates which rows in sales_online meet the geography.state filter criteria (a sale made in the state of CA or WA) and which country/state group each row belongs to (either the USA,WA group or USA,CA group).

Internally, the database creates a temporary table similar to the following:

CREATE TEMPORARY TABLE tt_geography AS
SELECT MAX(country), MAX(state), KEY_VECTOR_CREATE(...) dense_gr_key_geog
FROM   geography
WHERE  state IN ('WA','CA')
GROUP BY country, state

Table 7-6 shows rows in the tt_geography temporary table. The dense grouping key for the USA,WA combination is 1, and the dense grouping key for the USA,CA combination is 2.

The database creates a dense grouping key for each distinct category/subcategory combination of an Acme product.

For example, in Table 7-7, the 4 is the dense grouping key for an Acme electric switch.

A key vector for the products table might look like the array represented by the final column in Table 7-8. The values represent the products dense grouping key. For example, the 4 represents the online sale of an Acme electric switch. Thus, the key vector indicates which rows in sales_online meet the products filter criteria (a sale of an Acme product).

Internally, the database creates a temporary table similar to the following:

CREATE TEMPORTARY TABLE tt_products AS
SELECT MAX(category), MAX(subcategory), KEY_VECTOR_CREATE(...) dense_gr_key_prod
FROM   products
WHERE  manuf = 'ACME'
GROUP BY category, subcategory

Table 7-9 shows rows in this temporary table.

In this phase, the database processes the fact table.

The optimizer transforms the original query into the following equivalent query, which accesses the key vectors:

SELECT KEY_VECTOR_PROD(prod_id),
       KEY_VECTOR_GEOG(geog_id),
       SUM(amount)
FROM   sales_online
WHERE  KEY_VECTOR_PROD_FILTER(prod_id) IS NOT NULL
AND    KEY_VECTOR_GEOG_FILTER(geog_id) IS NOT NULL
GROUP BY KEY_VECTOR_PROD(prod_id), KEY_VECTOR_GEOG(geog_id)

The preceding transformation is not an exact rendition of the internal SQL, which is much more complicated, but a conceptual representation designed to illustrate the basic concept.

This phase obtains the amount sold for each combination of grouping keys.

The database uses the key vectors to filter out unwanted rows from the fact table. In Table 7-10, the first three columns represent the sales_online table. The last two columns provide the dense grouping keys for the geography and products tables.

As shown in Table 7-11, the database retrieves only those rows from sales_online with non-null values for both dense grouping keys, indicating rows that satisfy all the filtering criteria.

The database uses a multidimensional array to perform the aggregation.

In Table 7-12, the geography grouping keys are horizontal, and the products grouping keys are vertical. The database adds the values in the intersection of each dense grouping key combination. For example, for the intersection of the geography grouping key 1 and the products grouping key 1, the sum of 110 and 200 is 310.

In the final stage of processing, the database uses the dense grouping keys to join back the rows to the temporary tables to obtain the names of the regions and categories.

The results look as follows:

CATEGORY SUBCATEGORY COUNTRY STATE AMOUNT
-------- ----------- ------- ----- ------
electric bulb        USA     CA    120
electric switch      USA     WA    100
sport    ball        USA     CA    130
sport    bike        USA     WA    310
