Setting JDeveloper Project Properties

To create a Universal Connection Pool, first you must set JDeveloper project properties by performing the following steps:

  1. From the Application menu, select Default Project Properties.

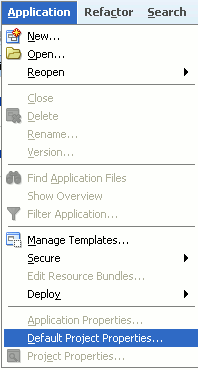

    Figure 8-1 Setting the Default Project Properties

    Description of Figure 8-1 follows
    Description of "Figure 8-1 Setting the Default Project Properties"
  2. Click Libraries and Classpath on the left panel of the Default Project Properties screen.

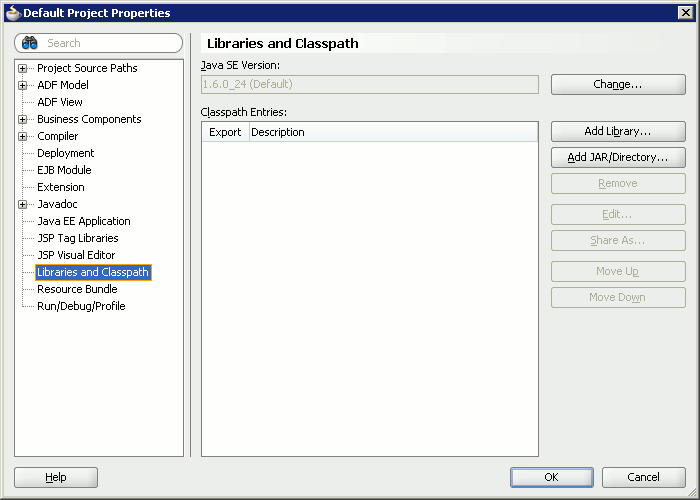

    Figure 8-2 Setting the Libraries and Classpath

    Description of Figure 8-2 follows
    Description of "Figure 8-2 Setting the Libraries and Classpath"
  3. Click Add JAR/ Directory on the right pane of the Default Project Properties screen.

    The Add Archive or Directory screen is displayed.

  4. Select ucp.jar file in the $ORACLE_HOME/ucp/lib folder and click Select.

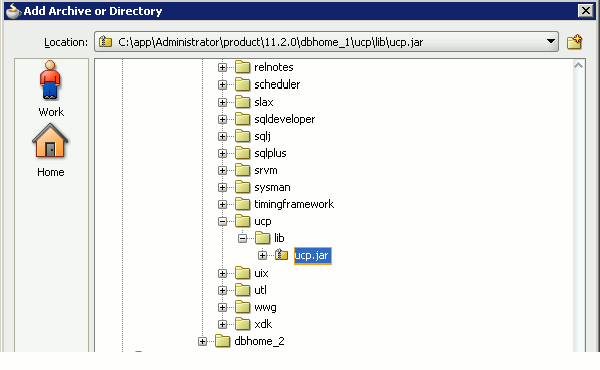

    Figure 8-3 The Add Archive or Directory Screen

    Description of Figure 8-3 follows
    Description of "Figure 8-3 The Add Archive or Directory Screen"
  5. Click OK.
