21 Monitoring Database Operations

This chapter describes how to monitor database operations.

This chapter contains the following topics:

About Monitoring Database Operations

A database operation is a user-defined logical object that includes session activity between two points in time. A database operation contains a set of database tasks, for example, a batch job or Extraction, Transformation, and Loading (ETL) processing job.

A simple database operation is a single SQL statement or PL/SQL procedure or function. A composite database operation is activity between two points in time in a database session, with each session defining its own beginning and end points. A session can participate in at most one composite database operation at a time.

A database operation is uniquely identified by its name and execution ID. Each operation can be executed many times. Each execution is uniquely identifiable.

Real-Time Database Operations provides the ability to monitor composite operations automatically. The database automatically monitors parallel queries, DML, and DDL statements as soon as execution begins. By default, Real-Time SQL Monitoring automatically starts when a SQL statement runs in parallel, or when it has consumed at least 5 seconds of CPU or I/O time in a single execution.

The SQL monitoring feature is enabled by default when the STATISTICS_LEVEL initialization parameter is either set to TYPICAL (the default value) or ALL. Using the DBMS_SQL_MONITOR package, you can start and stop, monitor, and report on database operations.

This section contains the following topics:

See Also:

Oracle Database Concepts for a brief conceptual overview of database operations

Purpose of Monitoring Database Operations

Real-time SQL Monitoring enables you to monitor a single SQL statement or PL/SQL program unit. Database operations extend this functionality by enabling you to treat a set of statements or procedures as a named, uniquely identified, and re-executable unit.

In general, monitoring database operations is useful for the following users:

  • DBAs whose responsibilities include identifying expensive (high response time) SQL statements and PL/SQL functions

  • DBAs who manage batch jobs in a data warehouse or OLTP system

  • Application or database developers who need to monitor the activities related to particular operations, for example, Oracle Data Pump operations

Monitoring database operations is useful for performing the following tasks:

  • Tracking and reporting

    Tracking requires first defining a database operation, for example, though DBMS_SQL_MONITOR, OCI, or JDBC APIs. You can define an operation from a different session from the one that you are currently using. The database infrastructure determines what to track on behalf of the defined operation.

    You can generate reports on the operation. For example, your tuning task may involve determining which SQL statements run on behalf of a specific batch job, what their execution statistics were, what was occurring in the database when the operation was executing, and so on.

  • Monitoring execution progress

    This task involves monitoring a currently executing database operation. The information is particularly useful when you are investigating why an operation is taking a long time to complete.

  • Monitoring resource usage

    You may want to detect when a SQL execution uses excessive CPU, issues an excessive amount of I/O, or takes a long time to complete. With Oracle Database Resource Manager (the Resource Manager), you can configure thresholds for each consumer group that specify the maximum resource usage for all SQL executions in the group. When a SQL operation reaches a specified threshold, the Resource Manager can switch the operation into a lower-priority consumer group, terminate the session or call, or log the event. You can then monitor these SQL operations.

  • Tuning for response time

    When tuning a database operation, you typically aim to improve the response time. Often the database operation performance issues are mainly SQL performance issues.

See Also:

Simple Database Operation Use Cases

For simple operations, Real-Time SQL Monitoring helps determine where a currently executing SQL statement is in its execution plan and where the statement is spending its time. You can also see the breakdown of time and resource usage for recently completed statements. In this way, you can better determine why a particular operation is expensive.

Typical use cases for Real-Time SQL Monitoring include the following:

  • A frequently executed SQL statement is executing more slowly than normal. You must identify the root cause of this problem.

  • A database session is experiencing slow performance.

  • A parallel SQL statement is taking a long time. You want to determine how the server processes are dividing the work.

Composite Database Operation Use Cases

In OLTP and data warehouse environments, a job often logically groups related SQL statements. The job can span multiple concurrent sessions.

Typical use cases for monitoring composite operations include the following:

  • A periodic batch job containing many SQL statements must complete in a certain number of hours, but took twice as long as expected.

  • After a database upgrade, the execution time of an important batch job doubled. To resolve this problem, you must collect enough relevant statistical data from the batch job before and after the upgrade, compare the two sets of data, and then identify the changes.

  • Packing a SQL tuning set (STS) took far longer than anticipated. To diagnose the problem, you need to know what was being executed over time. Because this issue cannot be easily reproduced, you need to monitor the process while it is running.

See Also:

"About SQL Tuning Sets"

Database Operation Monitoring Concepts

This topic provides an overview of the architecture and attributes of database operations.

This section contains the following topics:

About the Architecture of Database Operations

Real-Time SQL Monitoring is a feature of the Oracle Database Tuning Pack. Database operations are enabled when the CONTROL_MANAGEMENT_PACK_ACCESS initialization parameter is set to DIAGNOSTIC+TUNING (default).

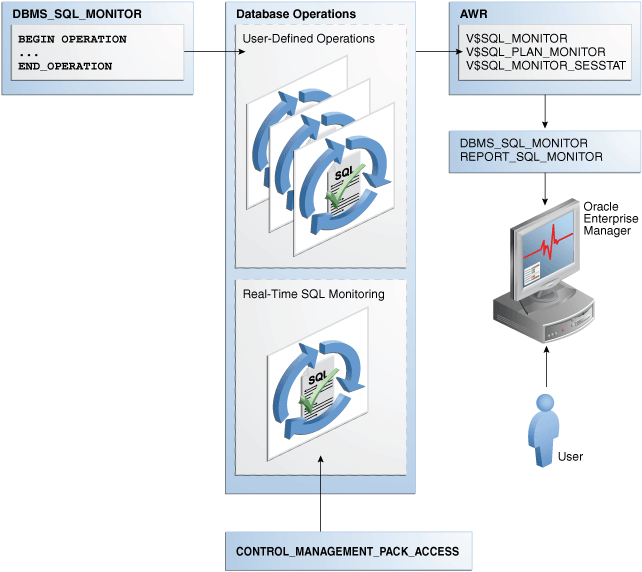

The following figure gives an overview of the architecture for database operations.

Figure 21-1 Architecture for Database Operations

Description of Figure 21-1 follows
Description of "Figure 21-1 Architecture for Database Operations"

As shown in the preceding graphic, the DBMS_SQL_MONITOR PL/SQL package defines database operations. After monitoring is initiated, the database stores metadata about the database operations in ASH and AWR. The database refreshes monitoring statistics in close to real time as each monitored statement executes, typically once every second. The database stores the operational data (the statements and metadata about the statements) in the SGA, and then periodically writes it to disk.

Every monitored database operation has an entry in the V$SQL_MONITOR view. This entry tracks key performance metrics collected for the execution, including the elapsed time, CPU time, number of reads and writes, I/O wait time, and various other wait times. The V$SQL_PLAN_MONITOR view includes monitoring statistics for each operation in the execution plan of the SQL statement being monitored. You can access reports by using DBMS_SQL_MONITOR.REPORT_SQL_MONITOR, which has an Oracle Enterprise Manager Cloud Control (Cloud Control) interface.

See Also:

Composite Database Operations

A composite database operation consists of the activity of one or more concurrent sessions between two points in time. SQL statements or PL/SQL procedures that execute within these two points in time are part of the composite operation.

Composite database operations can also be defined in the database kernel. Typical composite operations include SQL*Plus scripts, batch jobs, and ETL processing.

Attributes of Database Operations

The DBMS_SQL_MONITOR.BEGIN_OPERATION function defines a database operation.

A database operation is uniquely identified by the following information:

  • Database operation name

    This is a user-created name such as daily_sales_report. The operation name is the same for a job even if it is executed concurrently by different sessions or on different databases. Database operation names do not reside in different namespaces.

  • Database operation execution ID

    Two or more occurrences of the same database operation can run at the same time, with the same name but different execution IDs. This numeric ID uniquely identifies different executions of the same database operation.

    The database automatically creates an execution ID when you begin a database operation. You can also specify a user-created execution ID.

Optionally, can specify the session ID and session serial number in which to start the database operations. Thus, one database session can start a database operation defined in a different database session.

The database uses the following triplet of values to identify each SQL and PL/SQL statement monitored in the V$SQL_MONITOR view, regardless of whether the statement is included in a database operation:

  • SQL identifier to identify the SQL statement (SQL_ID)

  • Start execution timestamp (SQL_EXEC_START)

  • An internally generated identifier to ensure that this primary key is truly unique (SQL_EXEC_ID)

You can use zero or more additional attributes to describe and identify the characteristics of a database operation. Each attribute has a name and value. For example, for operation daily_sales_report, you might define the attribute db_name and assign it the value prod.

See Also:

User Interfaces for Database Operations Monitoring

This section contains the following topics:

Monitored SQL Executions Page in Cloud Control

The Monitored SQL Executions page in Cloud Control is the recommended interface for reporting on database operations.

Accessing the Monitored SQL Executions Page

The Monitored SQL Executions shows information such as the SQL ID, database time, and I/O requests.

To access the Monitored SQL Executions page:

  1. Access the Database Home page, as described in "Accessing the Database Home Page in Cloud Control."

  2. From the Performance menu, select SQL Monitoring.

    The Monitored SQL Executions page appears.

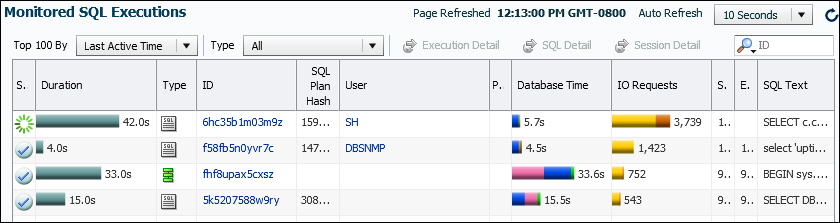

    Figure 21-2 Monitored SQL Executions

    Description of Figure 21-2 follows
    Description of "Figure 21-2 Monitored SQL Executions"

DBMS_SQL_MONITOR Package

The DBMS_SQL_MONITOR package defines the beginning and ending of a database operation, and generates a report of the database operations.

Table 21-1 DBMS_SQL_MONITOR

Program Unit Description

BEGIN_OPERATION

This function associates a session with a database operation. Starting in Oracle Database 12c Release 2 (12.2), you can use session_id and session_num to indicate the session in which to start monitoring.

END_OPERATION

This function disassociates a session from the specified database operation execution.

REPORT_SQL_MONITOR

This function accepts several input parameters to specify the execution, the level of detail in the report, and the report type. If no parameters are specified, then the function generates a text report for the last execution that was monitored.
COMPARE_DATABASE_OPERATIONS This function compares two database operations and produces a report. The report_level parameter indicate the level of comparison. BASIC compares the overall activity of the two operations. TYPICAL (the default) includes the top SQL or PL/SQL statements within the two operations. ALL include all SQL statements within the operations.
TREND_DATABASE_OPERATION This function uses all executions of the database operation within begin_date and end_date to generate a trend line for the various statistics. If you do not specify a list of statistics, then the trend line uses all top-level statistics, including BUFFER_GETS, ELAPSED_TIME, and CPU_TIME.

See Also:

Oracle Database PL/SQL Packages and Types Reference to learn about the DBMS_SQL_MONITOR package

Views for Database Operations Monitoring

You can monitor the statistics for SQL statement execution using the V$SQL_MONITOR, V$SQL_PLAN_MONITOR, and V$SQL_MONITOR_SESSTAT views.

Table 21-2 summarizes these views.

Table 21-2 Views for Database Operations Monitoring

View Description

V$SQL_MONITOR

This view contains global, high-level information about the top SQL statements in a database operation.

Each monitored SQL statement has an entry in this view. Each row contains a SQL statement whose statistics are accumulated from multiple sessions and all of its executions in the operation. The primary key is the combination of the columns DBOP_NAME, DBOP_EXEC_ID, and SQL_ID.

The V$SQL_MONITOR view contains a subset of the statistics available in V$SQL. However, unlike V$SQL, monitoring statistics are not cumulative over several executions. Instead, one entry in V$SQL_MONITOR is dedicated to a single execution of a SQL statement. If the database monitors two executions of the same SQL statement, then each execution has a separate entry in V$SQL_MONITOR.

V$SQL_MONITOR has one entry for the parallel execution coordinator process, and one entry for each parallel execution server process. Each entry has corresponding entries in V$SQL_PLAN_MONITOR. Because the processes allocated for the parallel execution of a SQL statement are cooperating for the same execution, these entries share the same execution key (the composite SQL_ID, SQL_EXEC_START and SQL_EXEC_ID). You can aggregate the execution key to determine the overall statistics for a parallel execution.

V$SQL_MONITOR_SESSTAT

This view contains the statistics for all sessions involved in the database operation.

Most of the statistics are cumulative. The database stores the statistics in XML format instead of using each column for each statistic. This view is primarily intended for the report generator. Oracle recommends that you use V$SESSTAT instead of V$SQL_MONITOR_SESSTAT.

V$SQL_PLAN_MONITOR

This view contains monitoring statistics for each step in the execution plan of the monitored SQL statement.

The database updates statistics in V$SQL_PLAN_MONITOR every second while the SQL statement is executing. Multiple entries exist in V$SQL_PLAN_MONITOR for every monitored SQL statement. Each entry corresponds to a step in the execution plan of the statement.

You can use the preceding views with the following views to get additional information about the monitored execution:

  • V$ACTIVE_SESSION_HISTORY

  • V$SESSION

  • V$SESSION_LONGOPS

  • V$SQL

  • V$SQL_PLAN

See Also:

Oracle Database Reference to learn about the V$ views for database operations monitoring

Basic Tasks in Database Operations Monitoring

This section explains the basic tasks in database operations monitoring. Basic tasks are as follows:

Enabling and Disabling Monitoring of Database Operations

Use initialization parameters to enable or disable monitoring.

This section contains the following topics:

Enabling Monitoring of Database Operations at the System Level

The SQL monitoring feature is enabled by default when the STATISTICS_LEVEL initialization parameter is either set to TYPICAL (the default value) or ALL. SQL monitoring starts automatically for all long-running queries.

Prerequisites

Because SQL monitoring is a feature of the Oracle Database Tuning Pack, the CONTROL_MANAGEMENT_PACK_ACCESS initialization parameter must be set to DIAGNOSTIC+TUNING (the default value).

Assumptions

This tutorial assumes the following:

  • The STATISTICS_LEVEL initialization parameter is set to BASIC.

  • You want to enable automatic monitoring of database operations.

To enable monitoring of database operations:

  1. Connect SQL*Plus to the database with the appropriate privileges, and then query the current database operations settings.

    For example, run the following SQL*Plus command:

    SQL> SHOW PARAMETER statistics_level

NAME                                TYPE        VALUE
----------------------------------- ----------- -----
statistics_level                    string      BASIC

  2. Set the statistics level to TYPICAL.

    For example, run the following SQL statement:

    SQL> ALTER SYSTEM SET STATISTICS_LEVEL='TYPICAL';

See Also:

Oracle Database Reference to learn about the STATISTICS_LEVEL and CONTROL_MANAGEMENT_PACK_ACCESS initialization parameter

Enabling and Disabling Monitoring of Database Operations at the Statement Level

When the CONTROL_MANAGEMENT_PACK_ACCESS initialization parameter is set to DIAGNOSTIC+TUNING, you can use hints to enable or disable monitoring of specific SQL statements.

The MONITOR hint enables monitoring, whereas the NO_MONITOR hint disables monitoring.

Two statement-level hints are available to force or prevent the database from monitoring a SQL statement. To force SQL monitoring, use the MONITOR hint:

SELECT /*+ MONITOR */ SYSDATE FROM DUAL;

This hint is effective only when the CONTROL_MANAGEMENT_PACK_ACCESS parameter is set to DIAGNOSTIC+TUNING. To prevent the hinted SQL statement from being monitored, use the NO_MONITOR reverse hint.

Assumptions

This tutorial assumes the following:

  • Database monitoring is currently enabled at the system level.

  • You want to disable automatic monitoring for the statement SELECT * FROM sales ORDER BY time_id.

To disable monitoring of database operations for a SQL statement:

  1. Execute the query with the NO_MONITOR hint.

    For example, run the following statement:

    SQL> SELECT * /*+NO_MONITOR*/ FROM sales ORDER BY time_id;

See Also:

Oracle Database SQL Language Reference for information about using the MONITOR and NO_MONITOR hints

Creating a Database Operation

Creating a database operation involves supplying a name and defining its beginning and end times. Start a database operation by using the DBMS_SQL_MONITOR.BEGIN_OPERATION function, and end it by using the DBMS_SQL_MONITOR.END_OPERATION procedure.

To begin the operation in a different session, specify the combination of session_id and serial_num. The BEGIN_OPERATION function returns the database operation execution ID. If dbop_exec_id is null, then the database generate a unique value.

Guidelines

A single namespace exists for database operations. Thus, name collisions are possible. Oracle recommends the following naming convention: component_name.subcomponent_name.operation name. For operations inside the database, Oracle recommends using ORA for the component name. For example, a materialized view refresh could be named ORA.MV.refresh. An E-Business Suite payroll function could be named EBIZ.payroll.

Assumptions

This example assumes the following:

  • You are an administrator and want to monitor statements in a session started by user sh.

  • You want to monitor queries of the sh.sales table and sh.customers table.

  • You want these two queries to be monitored as a database operation named sh_count.

The following example illustrates how to use the DBMS_SQL_MONITOR package to begin and end the database operation.

Table 21-3 Creating a Database Operation

SYSTEM Session SH Session DESCRIPTION
SQL> CONNECT SYSTEM
Enter password: *********
Connected.

n/a

Start SQL*Plus and connect as a user with the administrator privileges.

n/a


SQL> CONNECT sh
Enter password: ******
Connected.

In a different terminal, start SQL*Plus and connect as a user as user sh.


SELECT SID, SERIAL#
FROM   V$SESSION
WHERE  USERNAME = 'SH';

       SID    SERIAL#
---------- ----------
       121      13397

n/a

In the SYSTEM session, query the session ID and serial number of the sh session.


VARIABLE eid NUMBER

BEGIN
:eid:=DBMS_SQL_MONITOR.BEGIN_OPERATION
      ('sh_count', null, null,
       null, '121', '13397');
END;
/

PRINT eid

       EID
----------
         2

n/a

In the SYSTEM session, begin a database operation, specifying the session ID and serial number for the sh session.

n/a


SELECT count(*)
FROM   sh.sales;

  COUNT(*)
----------
    918843

SELECT COUNT(*)
FROM   sh.customers;

  COUNT(*)
----------
     55500

In the sh session, query the sales and customers tables. These SQL queries are part of the sh_count operation.


BEGIN
  DBMS_SQL_MONITOR.END_OPERATION
        ('sh_count',:eid);
END;
/

n/a

End the database operation by specifying the operation name and execution ID.


COL DBOP_NAME FORMAT a10
COL STATUS FORMAT a10
COL ID FORMAT 999

SELECT DBOP_NAME, DBOP_EXEC_ID AS ID,
       STATUS, CPU_TIME, BUFFER_GETS
FROM   V$SQL_MONITOR
WHERE DBOP_NAME IS NOT NULL
      ORDER BY DBOP_EXEC_ID;

DBOP_NAME  ID     STATUS CPU_TIME GETS
---------- -- ---------- -------- ----
sh_count    1  EXECUTING    24997   65

n/a

Query the metadata for the sh_count database operation.

See Also:

Oracle Database PL/SQL Packages and Types Reference to learn about the DBMS_SQL_MONITOR package

Monitoring SQL Executions Using Cloud Control

By default, AWR automatically captures SQL monitoring reports in XML format.

The reports capture only SQL statements that are not executing or queued and have finished execution since the last capture cycle. AWR captures reports only for the most expensive statements according to elapsed execution time.

The Monitored SQL Executions page in Enterprise Manager Cloud Control (Cloud Control) summarizes the activity for monitored statements. You can use this page to drill down and obtain additional details about particular statements. The Monitored SQL Executions Details page uses data from several views, including the following:

  • GV$SQL_MONITOR

  • GV$SQL_PLAN_MONITOR

  • GV$SQL_MONITOR_SESSTAT

  • GV$SQL

  • GV$SQL_PLAN

  • GV$ACTIVE_SESSION_HISTORY

  • GV$SESSION_LONGOPS

  • DBA_HIST_REPORTS

  • DBA_HIST_REPORTS_DETAILS

Assumptions

This tutorial assumes the following:

  • The user sh is executing the following long-running parallel query of the sales made to each customer:

    SELECT c.cust_id, c.cust_last_name, c.cust_first_name,
       s.prod_id, p.prod_name, s.time_id
FROM   sales s, customers c, products p
WHERE  s.cust_id = c.cust_id
AND    s.prod_id = p.prod_id
ORDER BY c.cust_id, s.time_id;

  • You want to ensure that the preceding query does not consume excessive resources. While the statement executes, you want to determine basic statistics about the database operation, such as the level of parallelism, the total database time, and number of I/O requests.

  • You use Cloud Control to monitor statement execution.

    Note:

    To generate the SQL monitor report from the command line, run the REPORT_SQL_MONITOR function in the DBMS_SQLTUNE package, as in the following sample SQL*Plus script:

    VARIABLE my_rept CLOB
BEGIN
  :my_rept :=DBMS_SQLTUNE.REPORT_SQL_MONITOR();
END;
/
PRINT :my_rept

To monitor SQL executions:

  1. Access the Monitored SQL Executions page, as described in "Monitored SQL Executions Page in Cloud Control".

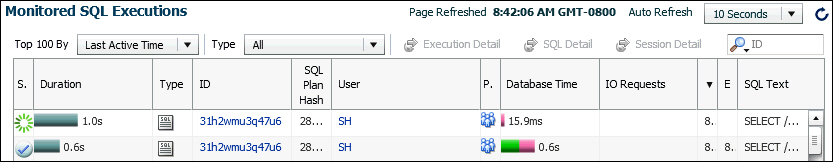

    In the following graphic, the top row shows the parallel query.

    Description of GUID-7E9C8EE0-104C-48FE-8F12-EBDF303738CE-default.jpg follows
    Description of the illustration GUID-7E9C8EE0-104C-48FE-8F12-EBDF303738CE-default.jpg

    In this example, the query has been executing for 1.4 minutes.

  2. Click the value in the SQL ID column to see details about the statement.

    The Monitored SQL Details page appears.

    Description of GUID-6D3990DC-1FD5-42C4-A656-E1CBB6F3260A-default.gif follows
    Description of the illustration GUID-6D3990DC-1FD5-42C4-A656-E1CBB6F3260A-default.gif

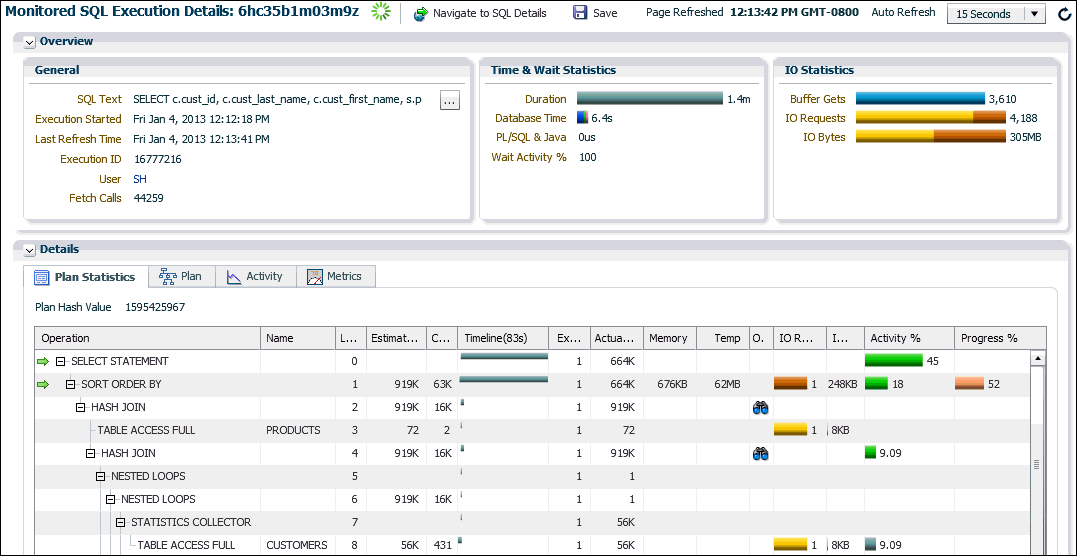

    The preceding report shows the execution plan and statistics relating to statement execution. For example, the Timeline column shows when each step of the execution plan was active. Times are shown relative to the beginning and end of the statement execution. The Executions column shows how many times an operation was executed.

  3. In the Overview section, click the link next to the SQL text.

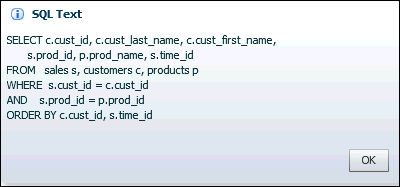

    A message shows the full text of the SQL statement.

    Description of GUID-2C8B790E-10C8-48FA-A454-0038BBC624A1-default.gif follows
    Description of the illustration GUID-2C8B790E-10C8-48FA-A454-0038BBC624A1-default.gif

  4. In the Time & Wait Statistics section, next to Database Time, move the cursor over the largest portion on the bar graph.

    A message shows that user I/O is consuming over half of database time.

    Description of GUID-09AEE7E3-85AE-4180-BBAB-2E75EDC21753-default.gif follows
    Description of the illustration GUID-09AEE7E3-85AE-4180-BBAB-2E75EDC21753-default.gif

    Database Time measures the amount of time the database has spent working on this SQL statement. This value includes CPU and wait times, such as I/O time. The bar graph is divided into several color-coded portions to highlight CPU resources, user I/O resources, and other resources. You can move the cursor over any portion to view the percentage value of the total.

  5. In the Details section, in the IO Requests column, move the cursor over the I/O requests bar to view the percentage value of the total.

    A message appears.

    Description of GUID-08D1BAD7-1D03-48F3-8EDE-1E9E1632705E-default.gif follows
    Description of the illustration GUID-08D1BAD7-1D03-48F3-8EDE-1E9E1632705E-default.gif

    In the preceding graphic, the IO Requests message shows the total number of read requests issued by the monitored SQL. The message shows that read requests form 80% of the total I/O requests.

See Also:

  • Cloud Control Online Help for descriptions of the elements on the Monitored SQL Executions Details page, and for complete descriptions of all statistics in the report.

  • Oracle Database Reference to learn about V$SQL_MONITOR and related views for database operations monitoring
