13 Oracle GoldenGate Automatic Conflict Detection and Resolution

You can configure automatic conflict detection and resolution in an Oracle GoldenGate configuration that replicates tables between Oracle databases. To configure conflict detection and resolution for a table, call the ADD_AUTO_CDR procedure in the DBMS_GOLDENGATE_ADM package.

Automatic conflict detection and resolution does not require application changes for the following reasons:

• Oracle Database automatically creates and maintains invisible timestamp columns.

• Inserts, updates, and deletes use the delete tombstone log table to determine if a row was deleted.

• LOB column conflicts can be detected.

• Oracle Database automatically configures supplemental logging on required columns.

Supplemental logging is required to ensure that each row LCR has the information required to detect and resolve a conflict. Supplemental logging places additional information in the redo log for the columns of a table when a DML operation is performed on the table. When you configure a table for Oracle GoldenGate conflict detection and resolution, supplemental logging is configured automatically for all of the columns in the table.

With timestamp conflict detection, a conflict occurs when the timestamp in the old column list of the row logical change record (row LCR) differs from the timestamp for the corresponding row in the table.

When you run the ADD_AUTO_CDR procedure in the DBMS_GOLDENGATE_ADM package to configure a table for automatic Oracle GoldenGate conflict detection and resolution, a hidden timestamp column is added to the table. This hidden timestamp column records the time of a row change, and this information is used to detect and resolve conflicts.

When a row LCR is applied, a conflict can occur for an INSERT, UPDATE, or DELETE operation. The following table describes each type of conflict and how it is resolved with latest timestamp conflict detection and resolution.

With delta conflict detection, a conflict occurs when a value in the old column list of the row logical change record (row LCR) differs from the value for the corresponding row in the table.

To configure delta conflict detection and resolution for a table, run the ADD_AUTO_CDR_DELTA_RES procedure in the DBMS_GOLDENGATE_ADM package. The delta resolution method does not depend on a timestamp or an extra resolution column. With delta conflict resolution, the conflict is resolved by adding the difference between the new and old values in the row LCR to the value in the table. This resolution method is generally used for financial data such as an account balance. For example, if a bank balance is updated at two sites concurrently, then the converged value accounts for all debits and credits.

The following figure provides an example that illustrates delta conflict detection and resolution.

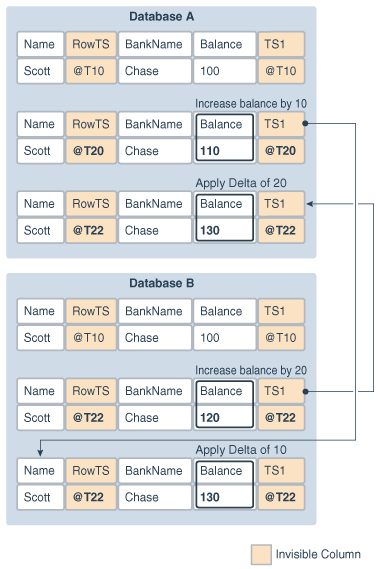

Figure 13-1 Delta Conflict Detection and Resolution

Description of "Figure 13-1 Delta Conflict Detection and Resolution"

This example shows a row being replicated at database A and database B. The Balance column is designated as the column on which delta conflict resolution is performed, and the TS1 column is the invisible timestamp column to track the time of each change to the Balance column. A change is made to the Balance value in the row in both databases at nearly the same time (@T20 in database A and @T22 in database B). These changes result in a conflict, and delta conflict resolution is used to resolve the conflict in the following way:

• At database A, the value of Balance was changed from 100 to 110. Therefore, the value was increased by 10.

• At database B, the value of Balance was changed from 100 to 120. Therefore, the value was increased by 20.

• To resolve the conflict at database A, the value of the difference between the new and old values in the row LCR to the value in the table. The difference between the new and old values in the LCR is 20 (120–100=20). Therefore, the current value in the table (110) is increased by 20 so that the value after conflict resolution is 130.

• To resolve the conflict at database B, the value of the difference between the new and old values in the row LCR to the value in the table. The difference between the new and old values in the LCR is 10 (110–100=10). Therefore, the current value in the table (120) is increased by 10 so that the value after conflict resolution is 130.

After delta conflict resolution, the value of the Balance column is the same for the row at database A and database B.

A column group is a logical grouping of one or more columns in a replicated table. When you add a column group, conflict detection and resolution is performed on the columns in the column group separately from the other columns in the table.

When you configure a table for Oracle GoldenGate conflict detection and resolution with the ADD_AUTO_CDR procedure, all of the scalar columns in the table are added to a default column group. To define other column groups for the table, run the ADD_AUTO_CDR_COLUMN_GROUP procedure. Any columns in the table that are not part of a user-defined column group remain in the default column group for the table.

Column groups enable different databases to update different columns in the same row at nearly the same time without causing a conflict. When column groups are configured for a table, conflicts can be avoided even if different databases update the same row in the table. A conflict is not detected if the updates change the values of columns in different column groups. The following figure provides an example that illustrates column groups.

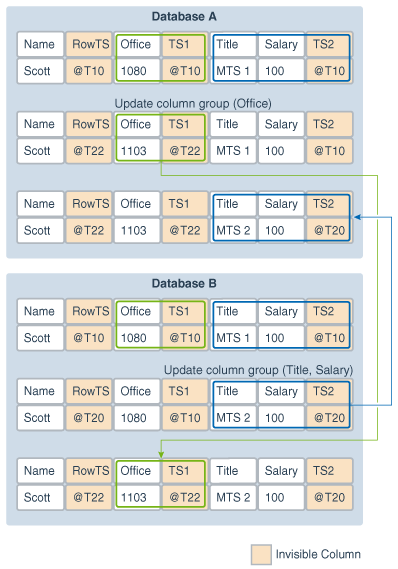

Figure 13-2 Column Groups

Description of "Figure 13-2 Column Groups"

This example shows a row being replicated at database A and database B. The following two column groups are configured for the replicated table at each database:

• One column group includes the Office column. The invisible timestamp column for this column group is TS1.

• Another column group includes the Title and Salary columns. The invisible timestamp column for this column group is TS2.

These column groups enable database A and database B to update the same row at nearly the same time without causing a conflict. Specifically, the following changes are made:

• At database A, the value of Office was changed from 1080 to 1030.

• At database B, the value of Title was changed from MTS1 to MTS2.

Because the Office column and the Title column are in different column groups, the changes are replicated without a conflict being detected. The result is that values in the row are same at both databases after each change has been replicated.

The ADD_AUTO_CDR procedure in the DBMS_GOLDENGATE_ADM package configures latest timestamp conflict detection and resolution. The ADD_AUTO_CDR_COLUMN_GROUP procedure adds optional column groups.

1. Connect to each database as the Oracle GoldenGate administrator.
2. Run the ADD_AUTO_CDR procedure and specify the table to configure for latest timestamp conflict detection and resolution.
3. Optional: Run the ADD_AUTO_CDR_COLUMN_GROUP procedure and specify one or more column groups in the table.
4. Repeat the previous steps in each Oracle database that replicates the table.

BEGIN
  DBMS_GOLDENGATE_ADM.ADD_AUTO_CDR(
    schema_name => 'hr',
    table_name  => 'employees');
END;
/

BEGIN
  DBMS_GOLDENGATE_ADM.ADD_AUTO_CDR_COLUMN_GROUP(
    schema_name       => 'hr',
    table_name        => 'employees',
    column_list       => 'job_id,department_id,manager_id',
    column_group_name => 'job_identifier_cg');
END;
/

BEGIN
  DBMS_GOLDENGATE_ADM.ADD_AUTO_CDR_COLUMN_GROUP(
    schema_name       => 'hr',
    table_name        => 'employees',
    column_list       => 'salary,commission_pct',
    column_group_name => 'compensation_cg');
END;
/

The ADD_AUTO_CDR_DELTA_RES procedure in the DBMS_GOLDENGATE_ADM package configures delta conflict detection and resolution.

1. Connect to each database as the Oracle GoldenGate administrator.
2. Run the ADD_AUTO_CDR procedure and specify the table to configure for latest timestamp conflict detection and resolution.
3. Run the ADD_AUTO_CDR_DELTA_RES procedure and specify the column on which delta conflict detection and resolution is performed.
4. Repeat the previous steps in each Oracle database that replicates the table.

BEGIN
  DBMS_GOLDENGATE_ADM.ADD_AUTO_CDR(
    schema_name => 'oe',
    table_name  => 'orders');
END;
/

BEGIN
  DBMS_GOLDENGATE_ADM.ADD_AUTO_CDR_DELTA_RES(
    schema_name => 'oe',
    table_name  => 'orders',
    column_name => 'order_total');
END;
/

The ALTER_AUTO_CDR procedure in the DBMS_GOLDENGATE_ADM package alters conflict detection and resolution for a table.

1. Connect to each database as the Oracle GoldenGate administrator.
2. Run the ALTER_AUTO_CDR procedure and specify the table to configure for latest timestamp conflict detection and resolution.
3. Repeat all of the previous steps in each Oracle database that replicates the table.

BEGIN
  DBMS_GOLDENGATE_ADM.ALTER_AUTO_CDR(
    schema_name       => 'hr',
    table_name        => 'employees',
    tombstone_deletes => TRUE);
END;
/

The ALTER_AUTO_CDR_COLUMN_GROUP procedure alters a column group.

1. Connect to the inbound server database as the Oracle GoldenGate administrator.
2. Run the ALTER_AUTO_CDR_COLUMN_GROUP procedure and specify one or more column groups in the table.
3. Repeat all of the previous steps in each Oracle database that replicates the table.

BEGIN
  DBMS_GOLDENGATE_ADM.ALTER_AUTO_CDR_COLUMN_GROUP(
    schema_name        => 'hr',
    table_name         => 'employees',
    column_group_name  => 'job_identifier_cg',
    remove_column_list => 'manager_id');
END;
/

The PURGE_TOMBSTONES procedure removes tombstone rows that were recorded before a specified date and time. This procedure removes the tombstone rows for all tables configured for conflict resolution in the database.

1. Connect to each database as the Oracle GoldenGate administrator.
2. Run the PURGE_TOMBSTONES procedure and specify the date and time.

EXEC DBMS_GOLDENGATE_ADM.PURGE_TOMBSTONES('2015-12-01 15:00:00.000000 EST');

The REMOVE_AUTO_CDR procedure in the DBMS_GOLDENGATE_ADM package removes automatic conflict detection and resolution from a table. This procedure also removes any column groups and delta conflict detection and resolution configured for the table.

1. Connect to each database as the Oracle GoldenGate administrator.
2. Run the REMOVE_AUTO_CDR procedure and specify the table.
3. Repeat all of the previous steps in each Oracle database that replicates the table.

BEGIN
  DBMS_GOLDENGATE_ADM.REMOVE_AUTO_CDR(
    schema_name => 'hr',
    table_name  => 'employees');
END;
/

The REMOVE_AUTO_CDR_COLUMN_GROUP procedure removes a column group.

1. Connect to each database as the Oracle GoldenGate administrator.
2. Run the REMOVE_AUTO_CDR_COLUMN_GROUP procedure and specify the name of the column group.
3. Repeat all of the previous steps in each Oracle database that replicates the table.

BEGIN
  DBMS_GOLDENGATE_ADM.REMOVE_AUTO_CDR_COLUMN_GROUP(
    schema_name       => 'hr',
    table_name        => 'employees',
    column_group_name => 'compensation_cg');
END;
/

The REMOVE_AUTO_CDR_DELTA_RES procedure in the DBMS_GOLDENGATE_ADM package removes delta conflict detection and resolution for a column.

1. Connect to the inbound server database as the Oracle GoldenGate administrator.
2. Run the REMOVE_AUTO_CDR_DELTA_RES procedure and specify the column.
3. Repeat all of the previous steps in each Oracle database that replicates the table.

BEGIN
  DBMS_GOLDENGATE_ADM.REMOVE_AUTO_CDR_DELTA_RES(
    schema_name => 'oe',
    table_name  => 'orders',
    column_name => 'order_total');
END;
/

The ALL_GG_AUTO_CDR_TABLES view displays information about the tables configured for Oracle GoldenGate automatic conflict detection and resolution.

1. Connect to the database.
2. Query the ALL_GG_AUTO_CDR_TABLES view.

COLUMN TABLE_OWNER FORMAT A15
COLUMN TABLE_NAME FORMAT A15
COLUMN TOMBSTONE_TABLE FORMAT A15
COLUMN ROW_RESOLUTION_COLUMN FORMAT A25

SELECT TABLE_OWNER,
       TABLE_NAME,
       TOMBSTONE_TABLE,
       ROW_RESOLUTION_COLUMN
  FROM ALL_GG_AUTO_CDR_TABLES
  ORDER BY TABLE_OWNER, TABLE_NAME;

TABLE_OWNER     TABLE_NAME      TOMBSTONE_TABLE ROW_RESOLUTION_COLUMN
--------------- --------------- --------------- -------------------------
HR              EMPLOYEES       DT$_EMPLOYEES   CDRTS$ROW
OE              ORDERS          DT$_ORDERS      CDRTS$ROW

The ALL_GG_AUTO_CDR_COLUMNS view displays information about the columns configured for Oracle GoldenGate automatic conflict detection and resolution.

1. Connect to the database as the Oracle GoldenGate administrator.
2. Query the ALL_GG_AUTO_CDR_COLUMNS view.

COLUMN TABLE_OWNER FORMAT A10
COLUMN TABLE_NAME FORMAT A10
COLUMN COLUMN_GROUP_NAME FORMAT A17
COLUMN COLUMN_NAME FORMAT A15
COLUMN RESOLUTION_COLUMN FORMAT A23

SELECT TABLE_OWNER,
       TABLE_NAME,
       COLUMN_GROUP_NAME,
       COLUMN_NAME,
       RESOLUTION_COLUMN
  FROM ALL_GG_AUTO_CDR_COLUMNS
  ORDER BY TABLE_OWNER, TABLE_NAME;

TABLE_OWNE TABLE_NAME COLUMN_GROUP_NAME COLUMN_NAME     RESOLUTION_COLUMN
---------- ---------- ----------------- --------------- -----------------------
HR         EMPLOYEES  COMPENSATION_CG   COMMISSION_PCT  CDRTS$COMPENSATION_CG
HR         EMPLOYEES  COMPENSATION_CG   SALARY          CDRTS$COMPENSATION_CG
HR         EMPLOYEES  JOB_IDENTIFIER_CG MANAGER_ID      CDRTS$JOB_IDENTIFIER_CG
HR         EMPLOYEES  JOB_IDENTIFIER_CG JOB_ID          CDRTS$JOB_IDENTIFIER_CG
HR         EMPLOYEES  JOB_IDENTIFIER_CG DEPARTMENT_ID   CDRTS$JOB_IDENTIFIER_CG
HR         EMPLOYEES  IMPLICIT_COLUMNS$ PHONE_NUMBER    CDRTS$ROW
HR         EMPLOYEES  IMPLICIT_COLUMNS$ LAST_NAME       CDRTS$ROW
HR         EMPLOYEES  IMPLICIT_COLUMNS$ HIRE_DATE       CDRTS$ROW
HR         EMPLOYEES  IMPLICIT_COLUMNS$ FIRST_NAME      CDRTS$ROW
HR         EMPLOYEES  IMPLICIT_COLUMNS$ EMAIL           CDRTS$ROW
HR         EMPLOYEES  IMPLICIT_COLUMNS$ EMPLOYEE_ID     CDRTS$ROW
OE         ORDERS     IMPLICIT_COLUMNS$ ORDER_MODE      CDRTS$ROW
OE         ORDERS     IMPLICIT_COLUMNS$ ORDER_ID        CDRTS$ROW
OE         ORDERS     IMPLICIT_COLUMNS$ ORDER_DATE      CDRTS$ROW
OE         ORDERS     IMPLICIT_COLUMNS$ CUSTOMER_ID     CDRTS$ROW
OE         ORDERS     DELTA$            ORDER_TOTAL
OE         ORDERS     IMPLICIT_COLUMNS$ PROMOTION_ID    CDRTS$ROW
OE         ORDERS     IMPLICIT_COLUMNS$ ORDER_STATUS    CDRTS$ROW
OE         ORDERS     IMPLICIT_COLUMNS$ SALES_REP_ID    CDRTS$ROW

The ALL_GG_AUTO_CDR_COLUMN_GROUPS view displays information about the column groups configured for Oracle GoldenGate automatic conflict detection and resolution.

1. Connect to the database as the Oracle GoldenGate administrator.
2. Query the ALL_GG_AUTO_CDR_COLUMN_GROUPS view.

COLUMN TABLE_OWNER FORMAT A15
COLUMN TABLE_NAME FORMAT A15
COLUMN COLUMN_GROUP_NAME FORMAT A20
COLUMN RESOLUTION_COLUMN FORMAT A25

SELECT TABLE_OWNER,
       TABLE_NAME,
       COLUMN_GROUP_NAME,
       RESOLUTION_COLUMN
  FROM ALL_GG_AUTO_CDR_COLUMN_GROUPS
  ORDER BY TABLE_OWNER, TABLE_NAME;

TABLE_OWNER     TABLE_NAME      COLUMN_GROUP_NAME    RESOLUTION_COLUMN
--------------- --------------- -------------------- -------------------------
HR              EMPLOYEES       COMPENSATION_CG      CDRTS$COMPENSATION_CG
HR              EMPLOYEES       JOB_IDENTIFIER_CG    CDRTS$JOB_IDENTIFIER_CG
